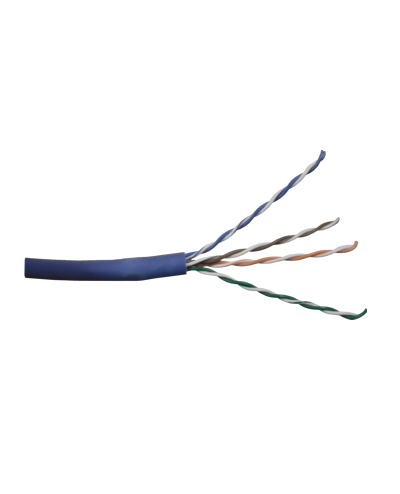

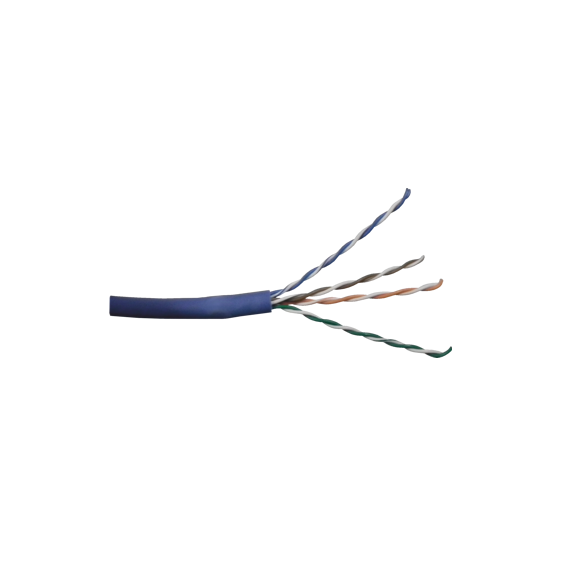

CAT 5E – Pure Copper / LSZH (Low Smoke Zero Halogen) - Purple - 305m

Name: CAT 5E – Pure Copper / LSZH (Low Smoke Zero Halogen) - Purple - 305m
SKU: C5-UTP-LSZH-PUR-305
Price: 89.88 GBP
Availability: InStock

Write a review

CODE: C5-UTP-LSZH-PUR-305

£89⁸⁸

£74⁹⁰ exc. VAT

In Stock

Supplied in an easy pull box

+ −

Capable of 100mbps transfer speed or 100mhz frequency at a maximum distance of 90 meters • Unscreened cables are thinner, more flexible and less expensive so are suited to building LANS and telecoms applications • Low smoke zero halogen plastic is good for use inside public buildings and spaces as will not emit toxic gases if the cable catches fire

Description
Attachments
Reviews

Conductor	Bare Copper
Conductor Diameter (mm)	0.47 ±0.01, 0.47 ±0.02
Insulation	HDPE
Insulation Thickness (mm)	0.18
Insulation Colour	Blue/White/Blue;Orange/White/Orange;Green/White/Green;Brown/White/Brown
Insulation Thickness 2 (mm)	0.88 ±0.08
Nylon Rip-Cord	White 210D
Jacket	LSZH
Jacket Colour	Purple RAL 4005
Jacket Thickness (mm)	0.49 ±0.03
Overall Diameter (mm)	4.80 ±0.03
Overall Sheath	LSZH
Overall Colour	Purple
Standards	ISO/IEC 11801, ANSI/TIA 568-C.2, CE2014/30/EU, LVD 2014/35/EU,RoHS2 2011/65/EU
CPR	Eca
Application	Internal Data and CCTV transmission up to 100Mb/s
EAN	5056631502050
AWG	24
Impedance (1-100MHz)	100O ±15O
Drain Wire	N
Weight	9.2
Flame Propagation Standard	Eca

Datasheet (cat5blue_spec.pdf, 542 Kb) [Download]
