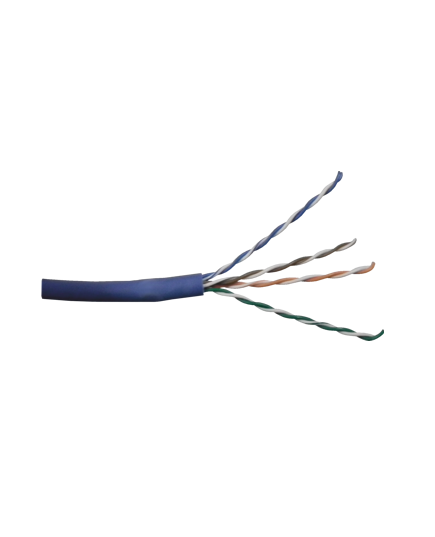

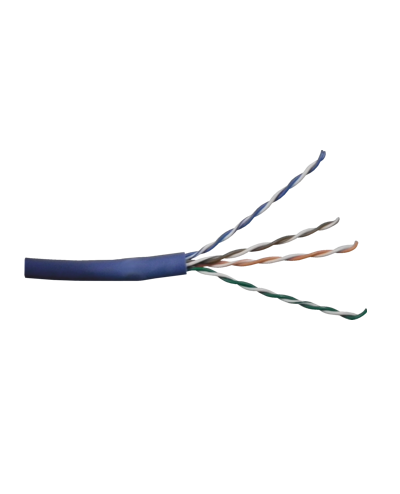

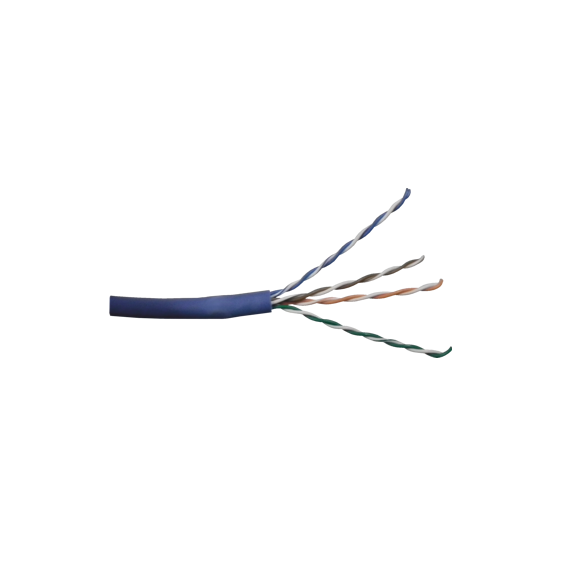

CAT 6 – Pure Copper / LSZH (Low Smoke Zero Halogen) - Purple - 305m

Name: CAT 6 – Pure Copper / LSZH (Low Smoke Zero Halogen) - Purple - 305m
SKU: C6-UTP-LSZH-PUR-305
Price: 119.88 GBP
Availability: InStock

Write a review

CODE: C6-UTP-LSZH-PUR-305

£119⁸⁸

£99⁹⁰ exc. VAT

In Stock

Improved performance and protection against fire • Supplied in an easy pull box

+ −

Capable of 1000mbps transfer speed or 250mhz frequency at a maximum distance of 90 meters • Unscreened cables are thinner, more flexible and less expensive so are suited to building LANS and telecoms applications • Low smoke zero halogen plastic is good for use inside public buildings and spaces as will not emit toxic gases if the cable catches fire

Description
Attachments
Reviews

Conductor	Bare Copper
Conductor Diameter (mm)	0.53 ±0.01, 0.54 ±0.020
Insulation	HDPE
Insulation Thickness (mm)	0.18
Insulation Colour	Blue/White/Blue;Orange/White/Orange;Green/White/Green;Brown/White/Brown
Insulation Thickness 2 (mm)	1.02 ±0.08
Nylon Rip-Cord	White 210D
Jacket	LSZH
Jacket Colour	Purple RAL 4005
Jacket Thickness (mm)	0.55 ±0.03
Overall Diameter (mm)	6.10 ±0.03
Overall Sheath	LSZH
Overall Colour	Purple
Standards	ISO/IEC 11801, ANSI/TIA 568-C.2, CE2014/30/EU, LVD 2014/35/EU,RoHS2 2011/65/EU
CPR	Eca
Application	Internal Data transmission up to 1Gb/s (10Gb/s up to 37m).
EAN	5056631502739
AWG	23, 24
Filler	Cross member
Drain Wire	N
Impedance (1-100MHz)	100O ±15O
Weight	14.6
Flame Propagation Standard	Eca

Datasheet (SFXC6UTPLSZHPUR305.pdf, 1,198 Kb) [Download]
