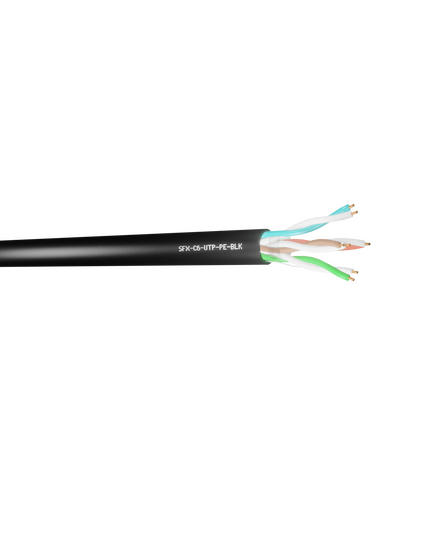

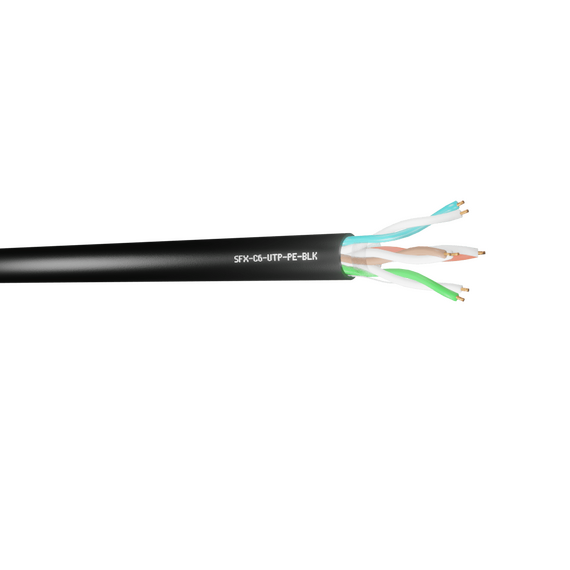

CAT 6 – Pure Copper / UTP - Black Outdoor - 305m
| Conductor | Bare Copper |
|---|---|
| Conductor Diameter (mm) | 0.53 ±0.01, 0.54 ±0.020 |
| Insulation | HDPE |
| Insulation Thickness (mm) | 0.18 |
| Insulation Colour | Blue/White/Blue;Orange/White/Orange;Green/White/Green;Brown/White/Brown |
| Insulation Thickness 2 (mm) | 1.02 ±0.08 |
| Nylon Rip-Cord | White 210D |
| Jacket | PE (UV resistant) |
| Jacket Colour | Black RAL 9005 |
| Jacket Thickness (mm) | 0.55 ±0.03 |
| Overall Diameter (mm) | 6.10 ±0.03 |
| Overall Sheath | PE |
| Overall Colour | Black |
| Standards | ISO/IEC 11801, ANSI/TIA 568-C.2, CE2014/30/EU, LVD 2014/35/EU,RoHS2 2011/65/EU |
| CPR | Fca |
| Application | External Data transmission up to 1Gb/s (10Gb/s up to 37m). |
| EAN | 5056631502807 |
| AWG | 23, 24 |
| Filler | Cross member |
| Drain Wire | N |
| Clear Polyester Tape | >=115>#/td### |
| Impedance (1-100MHz) | 100O ±15O |
| Weight | 15.05 |
| Flame Propagation Standard | Fca |
