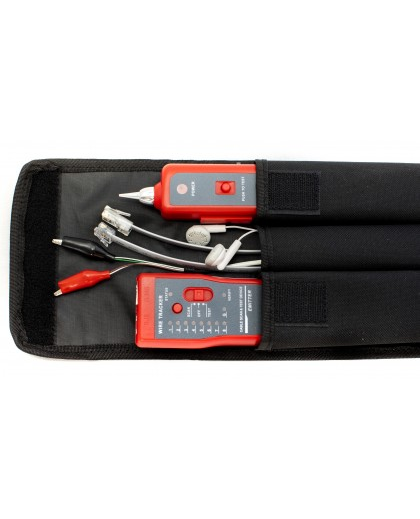

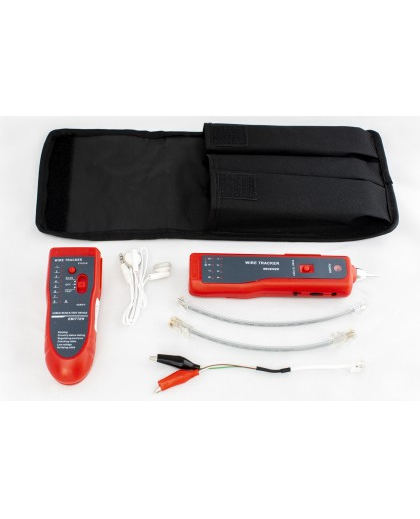

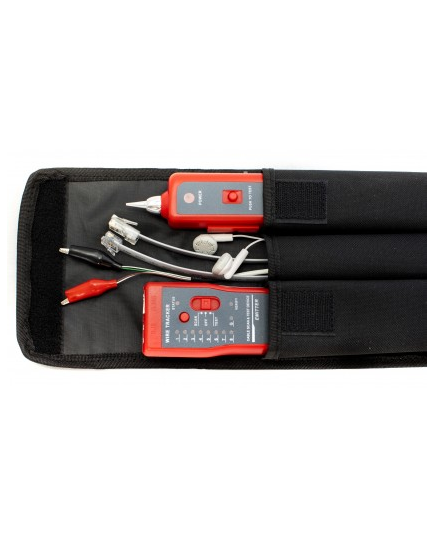

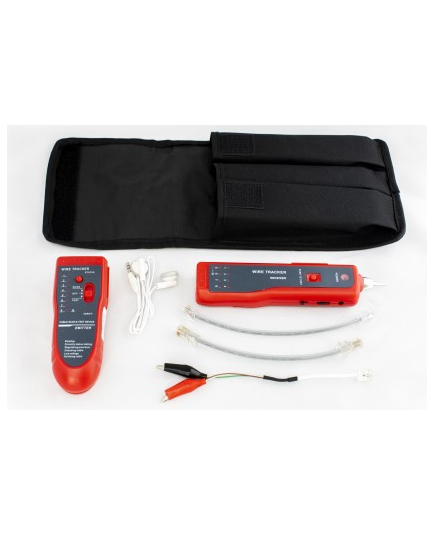

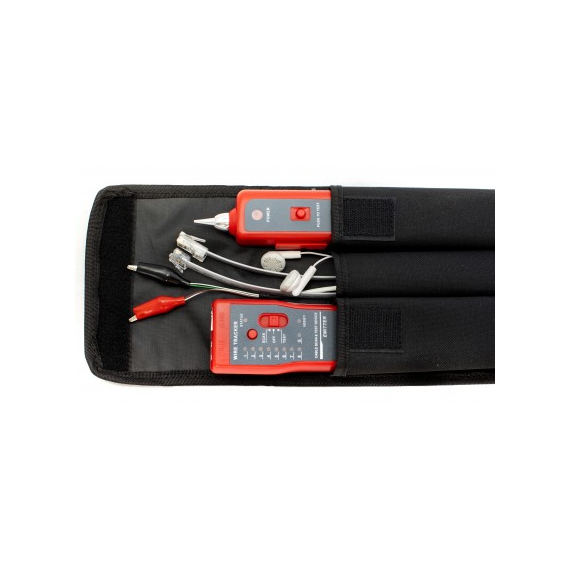

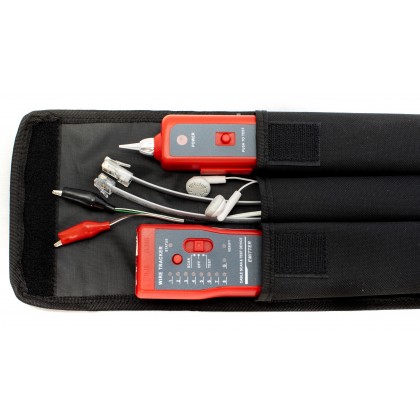

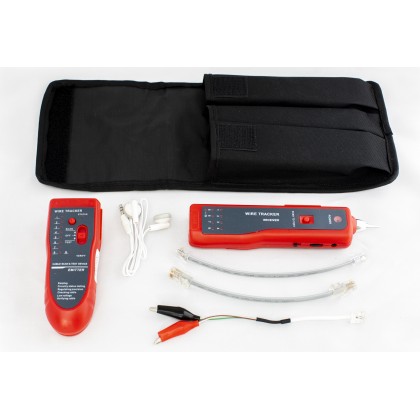

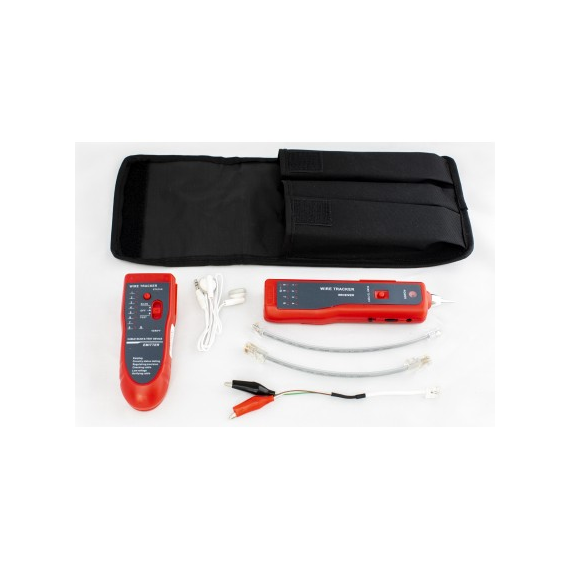

Haydon Cable tracker/tracer (with RJ45 Testing Tool Inbuilt)
Features:
1. Cable Tester for UTP STP RJ45(manual switch)
2. Automatic scan for miss wiring, cable order errors, open and short circuit
3. TEL/BNC test available(Adapter needed)
4. Remotely test cable up to 1000 ft in length ( remote kit included )
5. Protective power switch for low power consumption
6. Judge continuity of the cables or wires
7. Track the cables or wires, and diagnose the break point
8. Receiver tone signal on the cables or wires (telephone line)
9. Identify the state in the working telephone line (clear ring, busy)
10. Send a single solid tone or a dual alternating tone to the object cables or wires
11. Complete with high quality protective case
Specification:
Working current: Tester: 10mA Receiver: 30mA
Signal transfer mode: Digital signal
Signal output level: 8Vp-p
Signal transfer distance: 3Km
Dimension:Transmitter: 126x49x34mm Reveiver:175x42x25mm
Power: by 2 x DC 9V Battery( not included)
