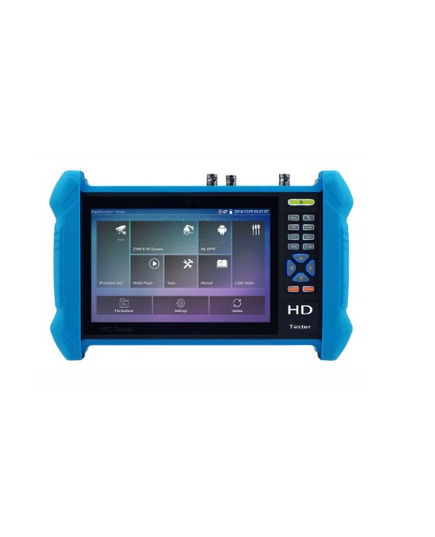

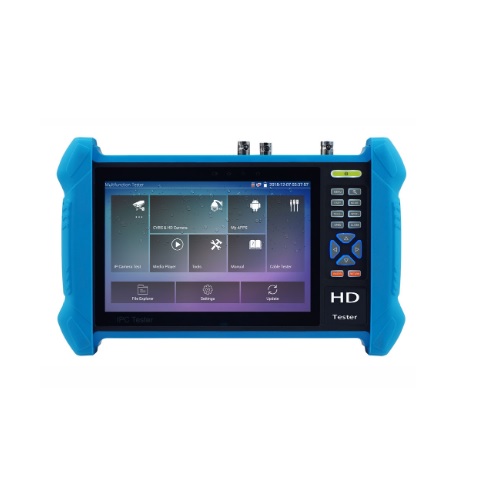

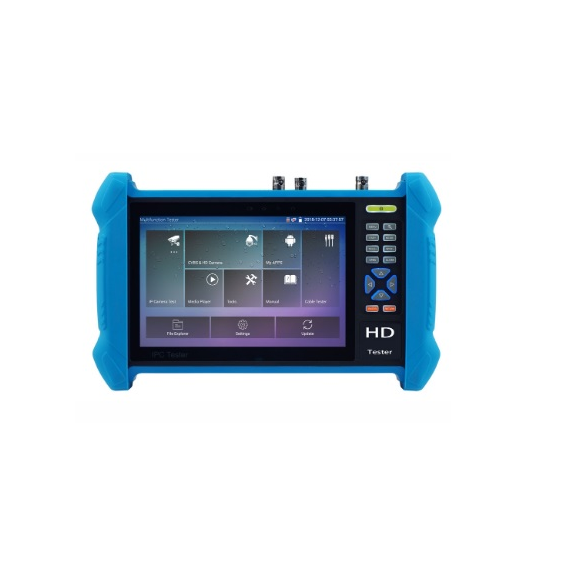

7" Multi Functional CCTV Test Monitor (DS7TEST-3 - inc Cable Tracer)
The 7 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP analogue, HD coaxial cameras as well as other security equipment. The 1280x800 resolution enables it to display network HD cameras and analogue cameras in high resolution. The unit supports many ONVIF PTZ and analogue PTZ controls.
| Panel Type | 7″ capacitive touch screen |
| Case Type | Ruggedised plastic |
| Maximum Resolution | 1920×1200 |
| IP Camera Test | IP discovery, ONVIF,IPC test,POE power output, Hik, Dahua, Chrome |
| WI FI | Built in, speed 150M, wireless camera display |
| Work Humidity | 30 % – 90 % |
| Work Temperature | -10 to +50 °C |
| Power On/Off | Auto 5 – 30 mins |
| CVBS | 1 x BNC in, 1 x BNC out Analogue video level meter, peak video signal level SYNC level, colour bar chroma level PTZ control RS485 , baud rate 600 – 115200bps, Compatible with Pelco D/P, Samsung, Panasonic etc. One channel colour bar generator PAL/NTSC |
| Co axial HD test | 8MP TVI, 8MP CVI / AHD, 8MP HD-SDI, EX-SDI |
| HDMI input | 1 channel HDMI input supports 1080P |
| HDMI output | 1 channel HDMI output supports 1080P |
| Cable test function | UTP , RJ45,TDR(optional),cable trace(optional) |
| Audio | 1 channel audio test function. Headphone socket |
| Power On / Off | Auto 5 – 30 mins |
| Audio Interface | 1 channel audio test function. Headphone socket |
| Storage | 8Gb SD card function |
| Stand Type | Desk |
| Colour | Blue |
| Weights and Dimensions | 240 x 154 x 46mm |
| GROSS Weight | 620 g |
POWER IN
Power Supply: 12v DC 2 Amp
Battery: 57Wh polymer lithium battery, With 23W charger, fully charged 4~5 hours
Battery Life: After full charge(4-5 hours) normally 16 hours working time.
POWER OUT
DC24v 2A: Temporary camera supply, short circuit protection
DC12v 3A: Temporary camera supply
PoE: 48v PoE output max 25.5W
DC5v 2A: USB out put as power bank only
UK 12v DC charger,3x carrying straps,BNC to BNC cable,DC 12v3A output cable, RS485 cable tester lead, audio test lead, RJ45 cable tester, carry case.
OSD: Main function icons for: IP camera test,CVBS and HD camera test, Cable test, Media player,Tools,My Apps, User manual, Update. Select main icon to enter sub menu. Also icons for file explorer, settings and theme
IP camera test: IP discovery, ONVIF, IPC test, POE power output, Hik, Dahua, Chrome
CVBS and HD: CVBS,TV out,8MP CVI, 8MP AHD, 8MP TVI, 8MP SDI
Cable test: Cable tester, RJ45 TDR test
Media player: HDMI in, Audio record, audio player, video player, RTSP player
Tools: Network tool, PoE & power info, Quick Office,Data monitor, flashlight, calculator
My Apps: Rapid video,Rapid IP discovery,iVMS4500HD,gDMSS HD lite,VLC,EZ View,Droi Notes, XMEye
