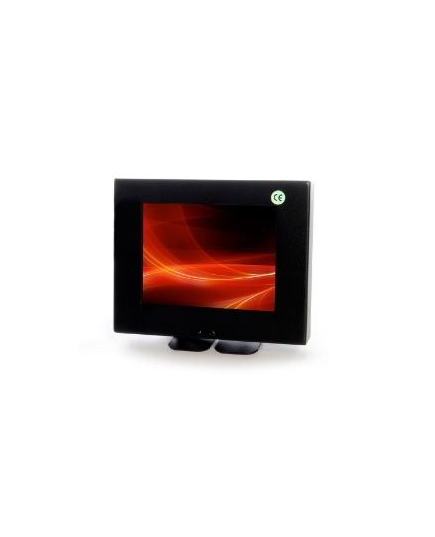

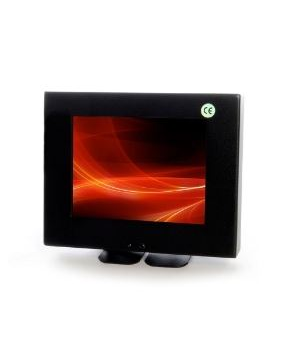

Vigilant Vision SMALL LED/LCD 8″Monitor (DSM8WGF)
The Vigilant Vision LED CCTV monitor has a screen size of 8in (4:3) and used in security monitoring applications. It has a metal case and a glass front.
| Panel Type | 8” (4:3) LED Monitor With Glass Front |
| Case Type | Metal |
| Maximum Resolution | 800 (H) x 600 (V) |
| Active Display Area | 162.0 x 121.5 (V) m m |
| Pixel Pitch | 0.675 (H) x 0.2025 (V) mm |
| Bezel Thickness | 22mm |
| Contrast Ratio | 500 : 1 Ratio |
| Brightness | 250 cd/ m² |
| Response Time | 10ms – 15ms |
| Viewing Angle | U/D: 50° / 70°, L/R: 70° / 70° |
| Display Colours | 16.7 M |
| Video Synchronization | Yes |
| PC Compatible Frequency | 30-80KHz(H) / 50-75Hz(V) Max. 800 x 600 |
| Adjustable Colour Temperature | 9300K / 6500K / 5800K / User |
| Video Compatiblity | Multi-Standard for NTSC / PAL |
| Aspect Ratio | 4 : 3 Ratio |
| VGA Auto Frequency correction | Yes |
| Number of Speakers | No |
| Sound Demodulation | N/A |
| Mute | N/A |
| Work Humidity | 20 % – 70 % |
| Work Temperature | -10 to 50 °C |
| Volume +/- Power On/Off | Power ON/OFF Only |
Screen Size
8"
